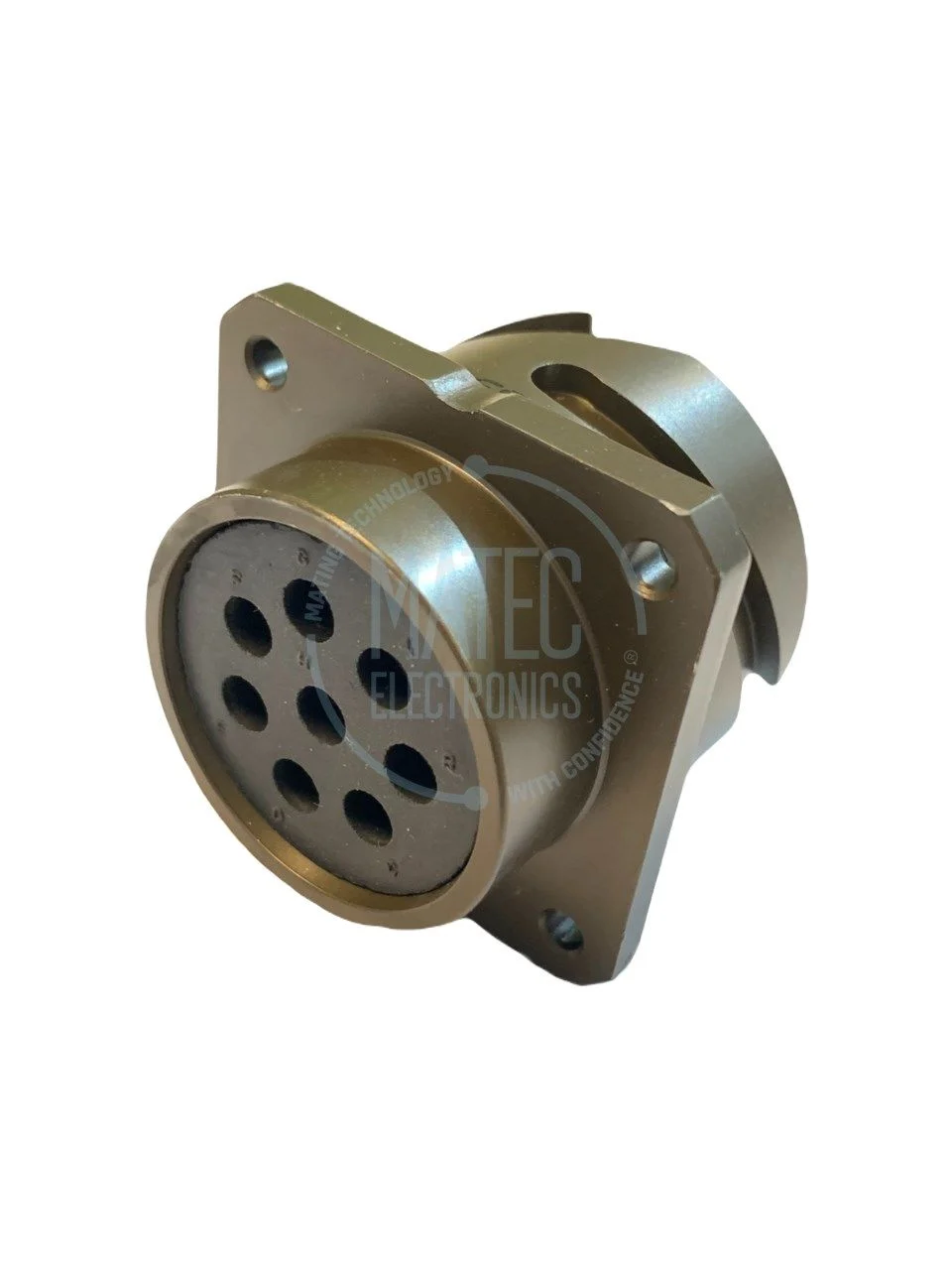

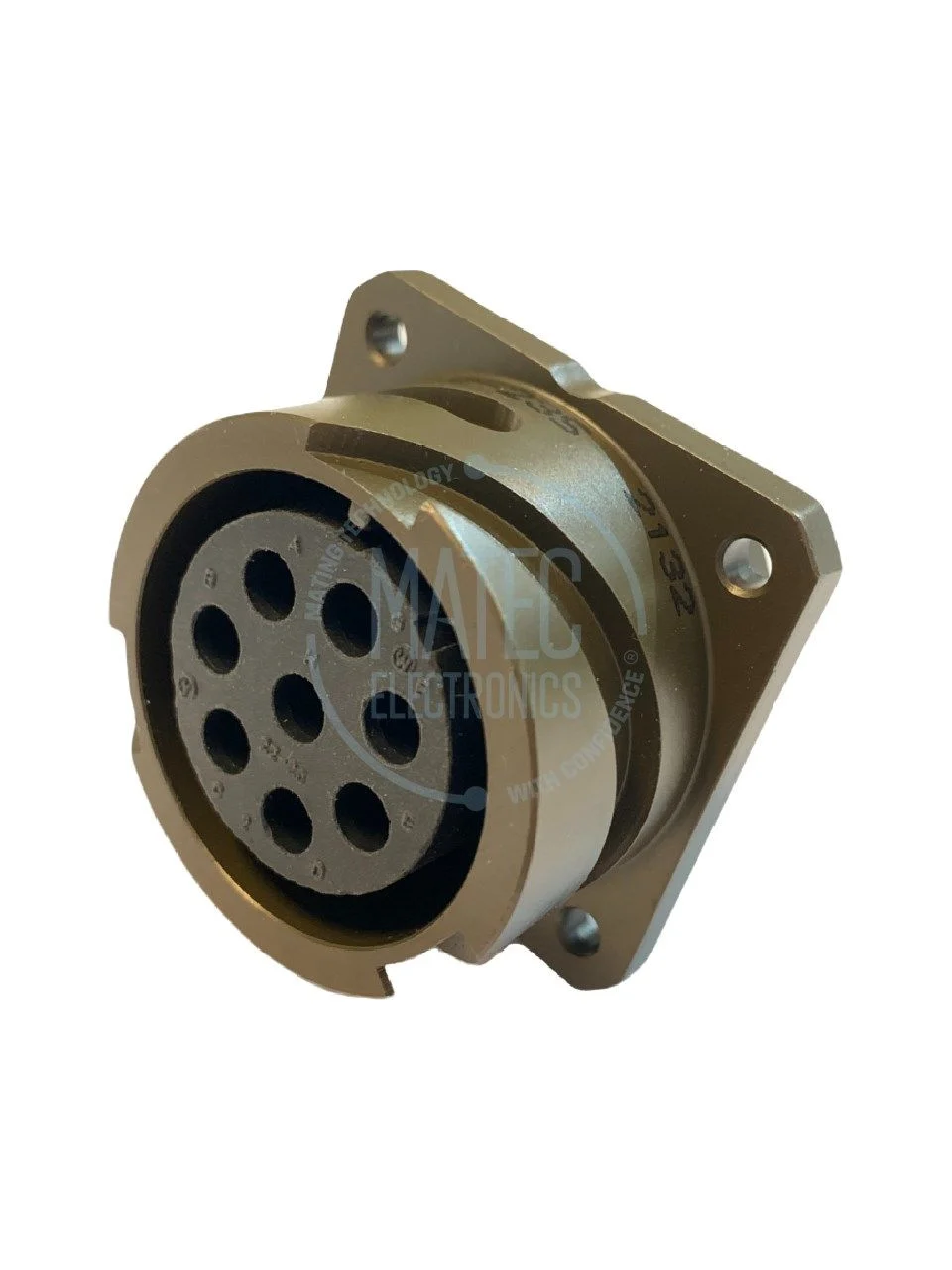

97B-4102E-22-23S
Amphenol 97B series is bayonet coupled connectors designed to meet the operating requirements of MIL-C-5015. Available in a variety of styles and classes, these connectors are primarily used in a range of military and industrial applications where specific degrees of environmental and EMI protections are required.
0.00 ₺
0.00 ₺
Brand :
AMPHENOL
Stock Code :
97B4102E2223S
Stock Amount :
3
pcs
| Brand | AMPHENOL |
| Connector Series | MIL-DTL-5015 |
| RoHS | NO |
| Connector Shell Style | Receptacle |
| Connector Mounting Type | Box Mount |
| Connector Mating Style | Reverse Bayonet |
| Shell Material | Aluminum |
| Shell Plating | Olive Drab Cadmium |
| Shell Size and Insert Arrangement | 22-23 |
| Number of Contacts and Contact Size | 8 X 12 AWG |
| Contact Termination Type | Crimp |
| Contact Gender | Socket |
| Operating Temperature | -55°C // +125°C |
| Keying Rotation | N |
| Mating Cycle | 500 |
| Backshell Type | E |
