M83513 MICRO-D TECHNOLOGY
SMALLEST MATTERS
In a World that technology happened to be the most important driver, it became utmost imporatance to design and produce more rugged systems with smallest dimensions. Actually, it has always been the same trend when mankind founded it's future in technology. 60-70 years ago, the very first computers and cell phones were expected to serve only for specific purposes. Nowadays, all the electronic equipments are expected to serve variety of requirements. More and more challanges are waiting to be solved and answered with less and less restricted mechanical spaces.
It is not different for connector technology as well. The engineers and designers now expect more and more from connectors, the contact count, the conductivity performance, smaller footprint, rugged operational fuctionalities and etc. Mechanically bigger connectors with a few number of contacts would have solved many challanging requirements in the past. The connectors are now expected to have many contacts in much more smaller footprint to serve more complicated signalization. They expected to be more smaller , more rugged , operationally more functional. When you add all these criterias and search for a solution, one of the best answer to the question is M83513 Micro-D Series.
Not only for Military and Aerospace programs but wherever more rugged solution is expected to have more signalization capacity with limited space, Mil-Standard 83513 Micro-D Connnectors offer proven Mil–Spec performance and being used everywhere in the World for Military and Aerospace programs such as Missiles, Space, C4ISR, Ground Vehicles and etc.

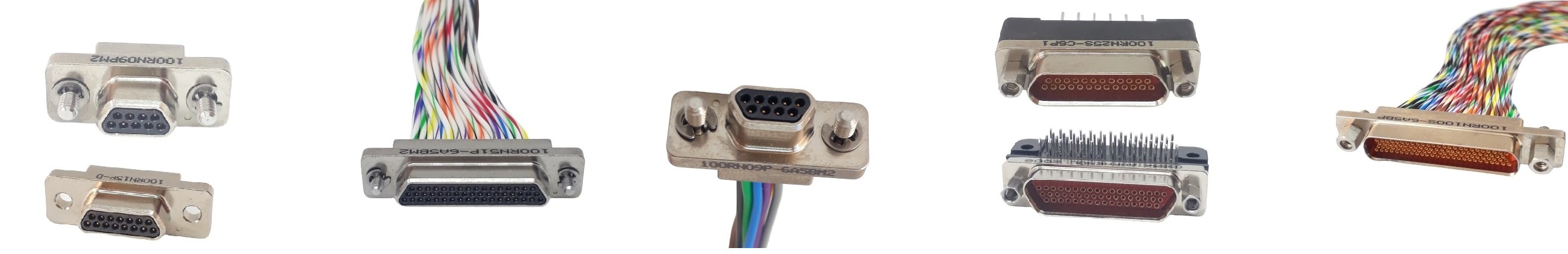

Lots of different variations and contact termination selections are available. From solder cup termination to wired harness options and PCB mount versions are all available. Micro-D’s can thus be used variety of application of big programs ;
-It can be used to make Board to Board connections : PC-Tail options with plug in/out features
-It can be used to design board to IO connector connection : PC-Tail receptacle and wiredcrim type plug Micro-D
-It can be used as an IO connectors for smaller subsystems : Solder, Wired Crimp or PC-Tail options available for ounting the connector on the box chasis. Plug Type on the other hand can be used with EMI type backshell in order to prevent any unwanted noise or jamming signals.

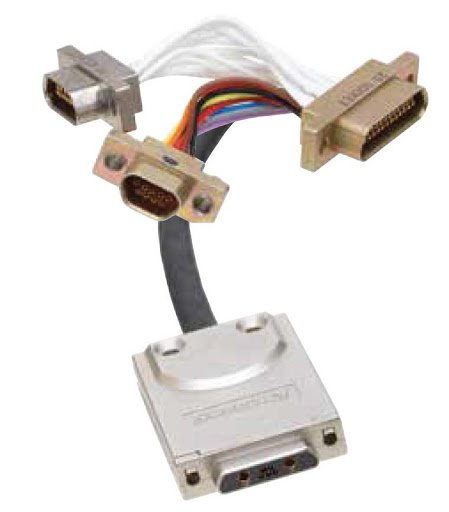

-It can be used as a transition connector : Many options are available for the application with unlimited number of wire lenght for wired Micro-Ds

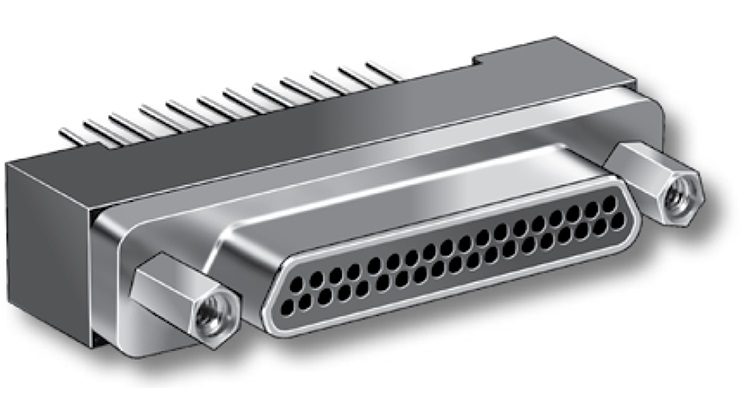

-It can be used as a board level connector : Whether the application demans a straight or right angle 90 degree PC Tail termination, lots of diffferent options are available including high density footprints and also power and high speed signalization types.
This technology driver connector series ihas eased many Engineering design problems and provided rugged solutions for variety of well-known programs. It is always a challange to select most proper solutions from unlimited options as summarized above. We, Matec Enginering team , is always there for you to find most suitable solutions in terms of project requirements , technology and budget, considering all the Project lifetime. The deadlines are now not one of your most important concern for your selection. We can support your challanging deadlines with our ready to ship Micro-D stock quantities.
Please take a look at our catalogue and get in touch with us for the countless options. We would be happy to share our connector expertise to explain all the technical details with mechanical samples.
