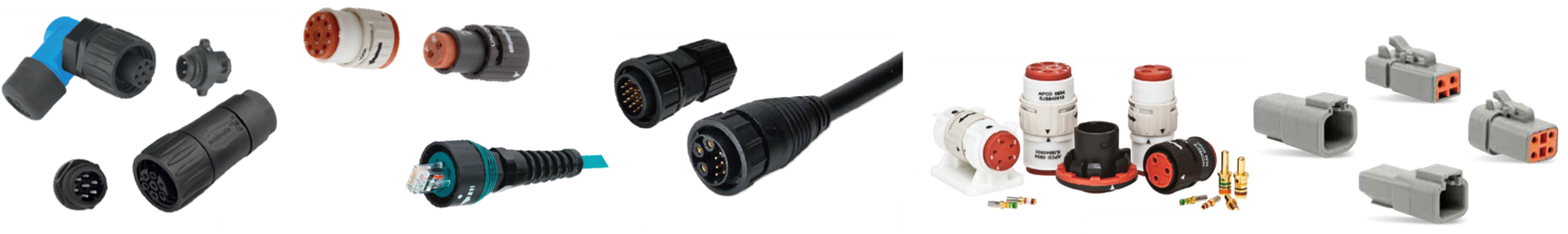

PLASTIC CONNECTORS

Matec Electronics provides the following plastic connectors in its product portfolio for the industrial markets Heavy Equipment, Factory Automation, Automotive, Lighting and many others…

LUMINUS

Pulse-Lok

ECO|MATE

Plastic Waterproof Connector Series

AT Series 2, 3, 4, 6, 8, 12 and 18 positions available

ATP Series 2 and 4 positions available

ATM Series 2, 3, 4, 6, 8 and 12 positions available

Modifications These modifications are a sampling of the options available

AHD Series 6 and 9 positions available

Custom Products These custom products are a sampling of the options available

Contacts

Accessories and Tooling

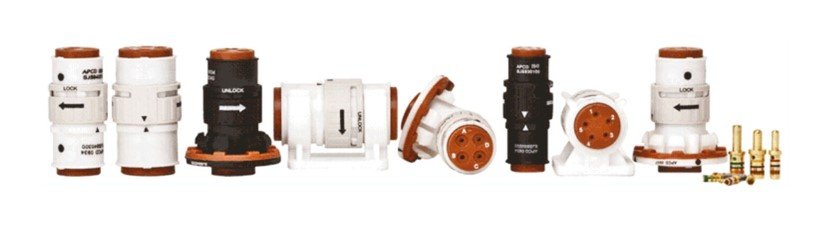

LUMINUS

The Luminus Series are small, cost‐effective connectors that are highly reliable and simple to use. With multiple product options to choose from, they meet MIL‐T‐81714, accept AS39029 & Stamped & Formed contacts, and are environmentally‐sealed. Ideal for where space is limited, these innovative connectors feature a locking mechanism that ensures stability, and are suitable for blind‐mating.

FEATURES:
๏ Quick Connect & Blind‐Mate
๏ Multiple keying options
๏ Environmentally sealed
๏ Durable
๏ S&F contacts for non‐military applications

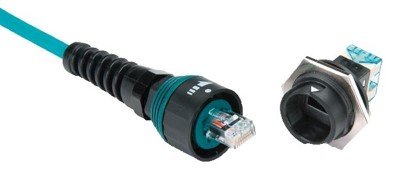

Pulse-Lok

Pulse‐Lok® connectors have a unique locking coupling system with both tactile and audible confirmation for secure connections as well as quick‐release action.
These connectors are excellent for medical, factory automation, and instrumentation field applications. Many contact types are available, including signal, power, high‐voltage, and Ethernet.

FEATURES:
๏ Quick release action
๏ Small package (.500 — 1.2” diameter)
๏ Tactile confirmation
๏ 1 to 78 contacts

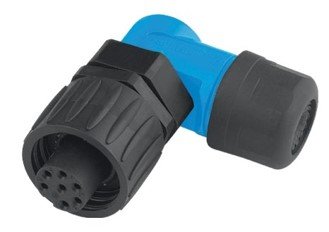

ECO|MATE

This connector meets the high requirements for applications in industrial technology. Easy operation, reduced dimensions and a more robust design are only a few of the features of the series.

The connector’s main area of application is in the fields of plant construction and machine building. The connector is used for measuring and controlling applications as well as for power supply.technology. The series is comprised of a large selection of housings and shapes and offers models with screw, solder and crimp termination.

FEATURES:
๏ Circular Connectors with 3+PE and 6+PE contacts
๏ Housing components from premium molding material
๏ Cable housing straight or angled
๏ IP 65/67 in mated condition (DIN EN 60526)
๏ Clamping ring or internal strain relief

ADVANTAGES:
๏ Quick and easy assembly
๏ Screwed cable gland with clamping ring
๏ Strain relief and mounted gasket all in one component
๏ Cable housing, straight or angled, for the cable diameter 6 ‐ 12,5 mm
๏ Robust thread for the screwed cable gland
๏ Ergonomically designed product range for safe handling
๏ Pre‐loaded ground contact
๏ Fastening for the protective caps on the housing of the receptacles

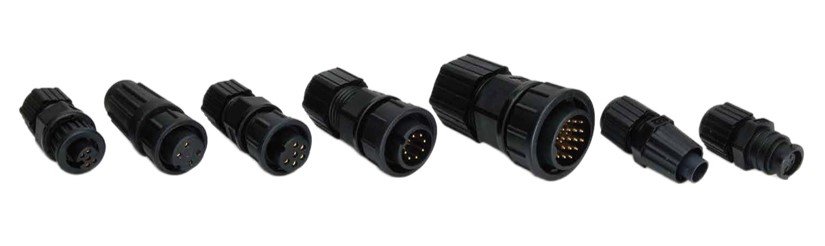

Plastic Waterproof Connector Series

FEATURES:
๏ Mating Options: Screw Threaded Type, Lock Bayonet Type or Push Lock Type
๏ Contact options: Stamped, Screw‐In, PCB and Solder (up to 30A per contact)
๏ Receptacle, Receptacle with cable, Over‐molded With Cable & Field Installable available
Insert Arrangement: Variety of configurations are available including:
• Circular
• Power
• Hybrid
• DVI
• RJ
• USB
• D-Sub
• HDMI
• e-SATA
• Fiber Optic
• M type Sensor
• IEEE 1394
๏ M8/M12 Series meets industry standards (IEC, NMEA2000, DeviceNet, EtherNet, I/P, Profibus & ProfiNet)
๏ Various sizes, over 1000 items
๏ UV Resistant
๏ IP65/66/67/68/69K waterproof (mated or unmated)
๏ PVC, PUR Jackets available for cables (Sun, Oil Resistant & Flame rated)
๏ UL/CSA Approval

ADVANTAGES:
๏ Cost Effective Solution
๏ High level of customization possibility
๏ Easy mating

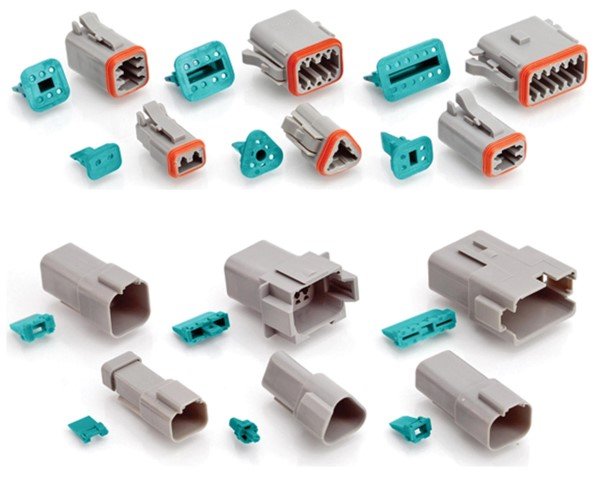

AT Series 2, 3, 4, 6, 8, 12 and 18 / ATP Series 2 and 4 / ATM Series 2, 3, 4, 6, 8 and 12 positions available
