Matec Electronics keeps variety of MIL-SPEC M39029 Series and Industry Standart Machine and Stamped-Formed Connector Contacts that are readily available in the warehouse. Whatever the project requirement is, Matec’s engineering team can help choosing most efficient electrical interconnect interface in accordance with industry standard or high-speed protocols. Whether the demand is just for replacement or as a buffer need for maintanence, or it is based on brand new technology requirement , Matec’s senior engineering staff will make sure that the contacts of the connectors are chosen correctly and is the most adequate solution. Our engineering team is available for consultation from the beginning of the very first design stage. We categorized the contacts based on their data rates and amperage levels.

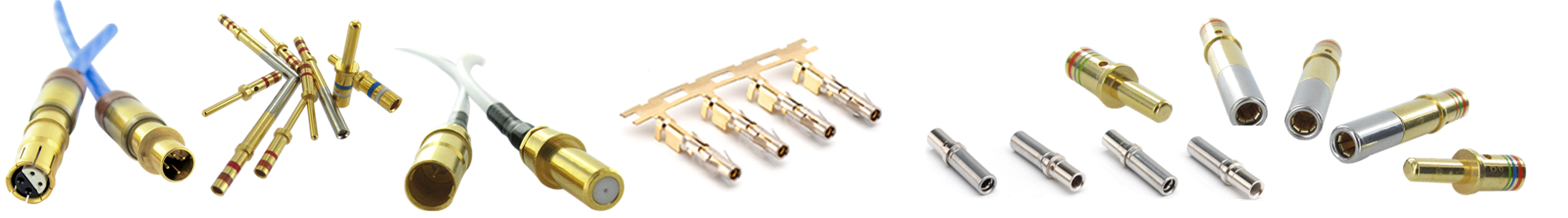

Signal Contacts

a. Machined Contacts

     - One piece Contact

    - Several termination available (crimp, solder, PC tail, compliant pins)

    - Compliant with European - EN3155 and US - AS39029 standards

    - Applications - MIL-DTL-38999/EN3645/2M /26482 / 5015 / SIM/EN4165 / EN2997 / ARINC / MICRO-D / D-SUB and many other military and industrial type connectors…

b. Stamped & Formed Contacts

    - Pre-stamped strip and comb configurations

    - Termination available with crimp versions

    - Mostly used for high volume usage

    - Applications – Mostly industrial type connectors

Power Contacts

One piece Contact – machined type

Several termination available (crimp, solder, PC tail, compliant pins)

Compliant with European - EN3155 and US - AS39029 standards

Applications - MIL-DTL-38999/EN3645/2M /26482 / 5015 / SIM/EN4165 / EN2997 / ARINC / MICRO-D / D-SUB and many other military and industrial type connectors…

High Speed Contacts

Shielded coaxial contact - Designed for high frequencies interconnection , AS39029 qualified coax

Impedance Matched Coax Contacts - Coaxial contacts for RF/Radiofrequency for high frequency use, AS39029 qualified coax

75 Ohms Coaxial Contacts - Coaxial contacts for video applications

RF Coax Contacts - Coax Contact for RF applications with high frequencies requirements (up to 65GHz)

Twinax Contacts - The best choice for MIL-STD-1553 et Arinc 429 standard, qualified further EN3155-024 and EN3155-025; ABS1600, ABS1607

Differential Twinax Contacts - Contacts for differential pairs 100 to 150Ohms

Quadrax Contacts Designed for high data transfer rate with low consumption, Qualified further EN3155-074 and 075

Split Pair Quadrax Contacts - With better crosstalk performance, this contact allows a higher data rate than Cat 5E

Octomax 1G26 Contacts - Octomax 1G26 is the new generation of Ethernet contacts compatible with all Size 8 quadrax cavities, One Octomax 1G26 is equivalent to two quadrax

Fiber Optic Contacts

M29504/4 & /5 Fiber Optic Termini - M29504/4 pin terminus, M29504/5 socket terminus, Fiber optic contacts for MIL-DTL-38999 Series III

M29F & M29G Series Fiber Optic Termini - Fiber optic contacts for ARINC type connectors

M29504/14 &/15 Fiber Optic Termini - M29504/14  pin terminus, M29504/15 socket terminus, Compatible with M28876

Lumière termini - a direct replacement in ELIO

FSAF Series fiber optic termini - Compatible with TFOCA-III® and THD high-density connectors

M801 Series fiber optic terminus - compatible with all existing ARINC 801 connectors

TFOCA Biconic Termini - designed in accordance with M83626/12-02 & /13-02.

MTFP termini - built in accordance with MIL-PRF-83526/16 & /17 for use in TFOCA-II connectors
