MATEC Electronics delivers VisioCablePro®'s world-leading Offline Cable Measurement, Cable Sample Preparation and Material Test Devices. iiM cable measurement engineering has especially been developed to carry out geometrical measurements, which specifically fulfill cable producers requirements to measure the geometrical features of insulating skins and cable sheaths.
Cable Sample Preparation
iiM offers various type of devices to meet highest quality requirements. These products provide a solution for very small samples and also large cable solutions.

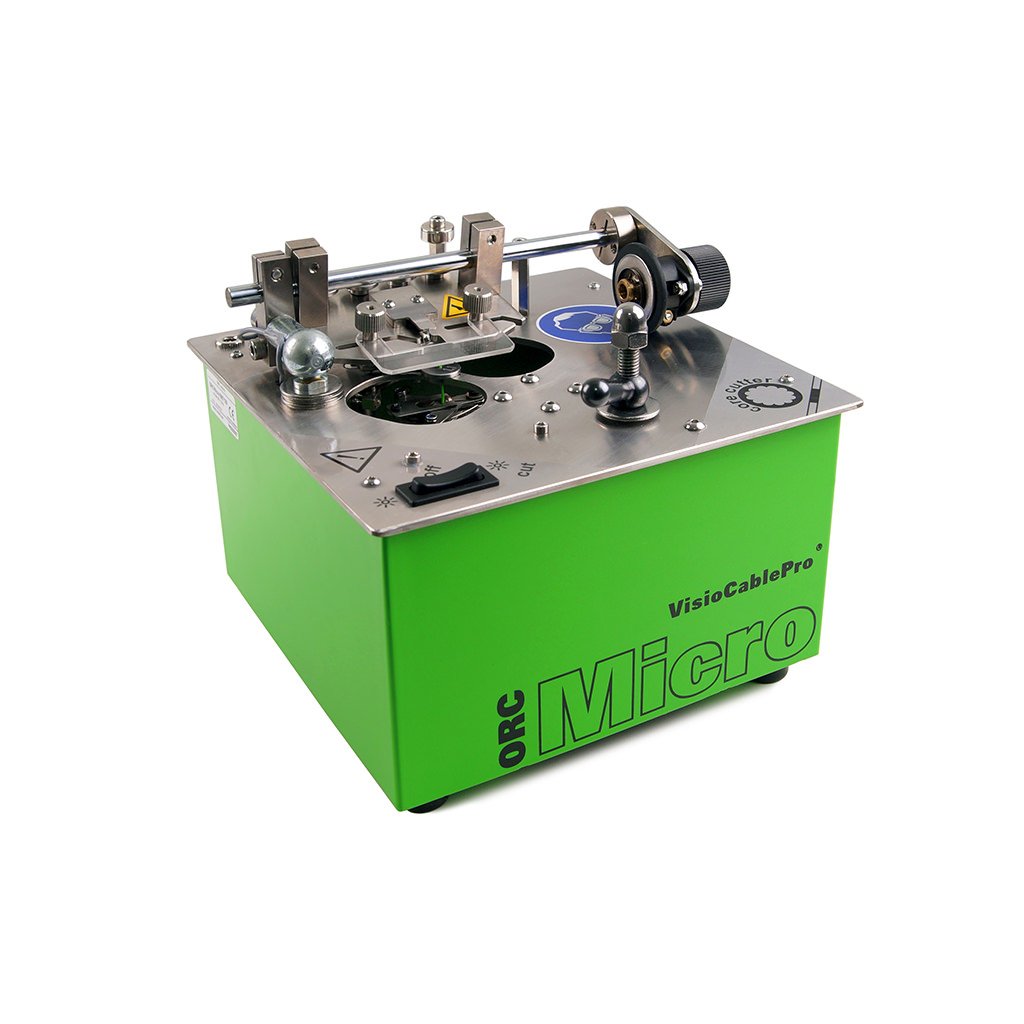

ORC MICRO
|
- Sample cutting device for very small samples
- Sample preparation according to IEC 60811
- Sample cutting device for cutting very small samples up to 3.5 mm (0.14") outer diameter depending on material and wall thickness
- Easy and fast operation
- Robust, compact device out of stainless steel- no corrosion
- 4 different adapters to stabilise the samples (on request more adapters of different sizes avaliable)
|

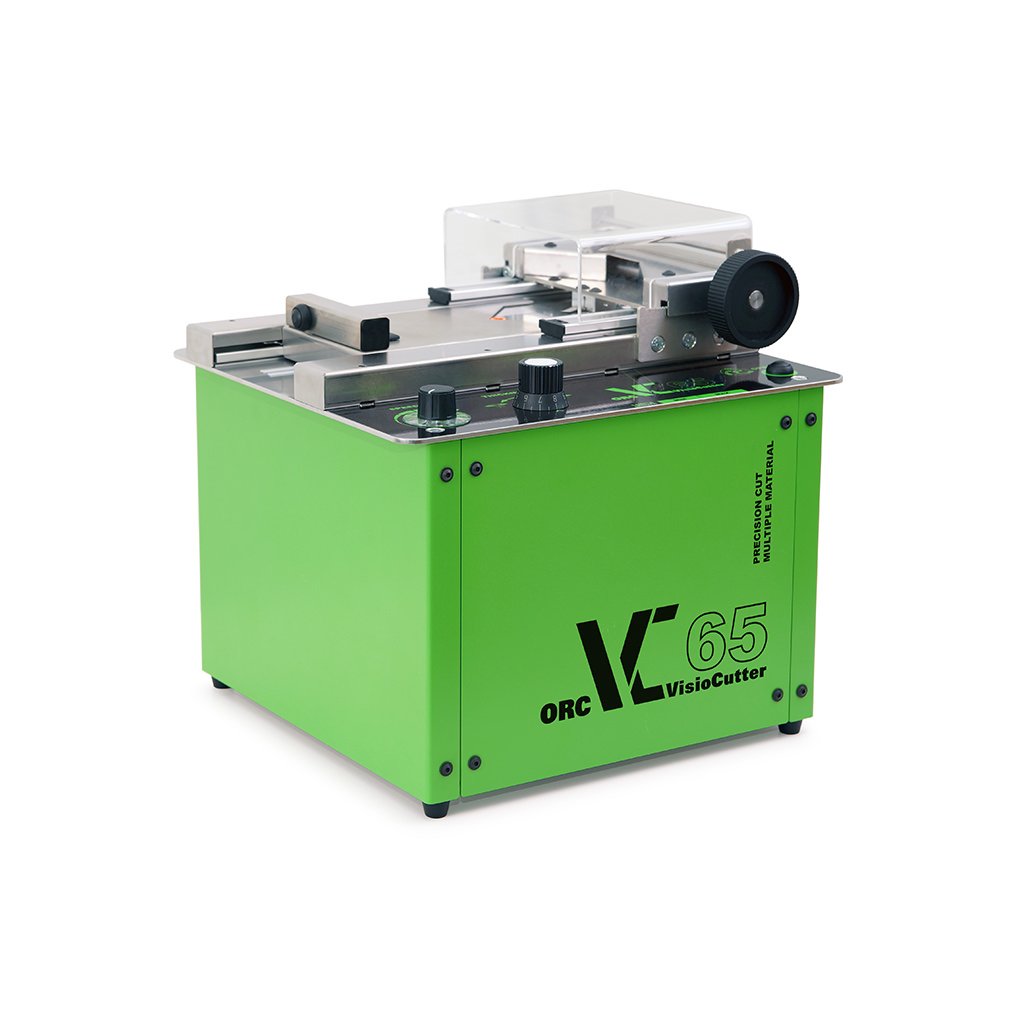

ORC VC65
 |
- Precision cutting of multiple materials
- Ideal cutting results
- Improved sample quality through an exact and reproducible sample thickness
- Suitable for a wide variety of materials
- Robust and durable blade with double wear time (2-sided usable)
- Exact adjustment of the rotating speed
- The influence of the operator is minimized by the predefined blade feed
- Fine, manual dosing of the progessive feed
- Easy exchange of the wire grips possible, with standart tooling
- Intelligent control electronics ensure an intuitive and safe operation
|

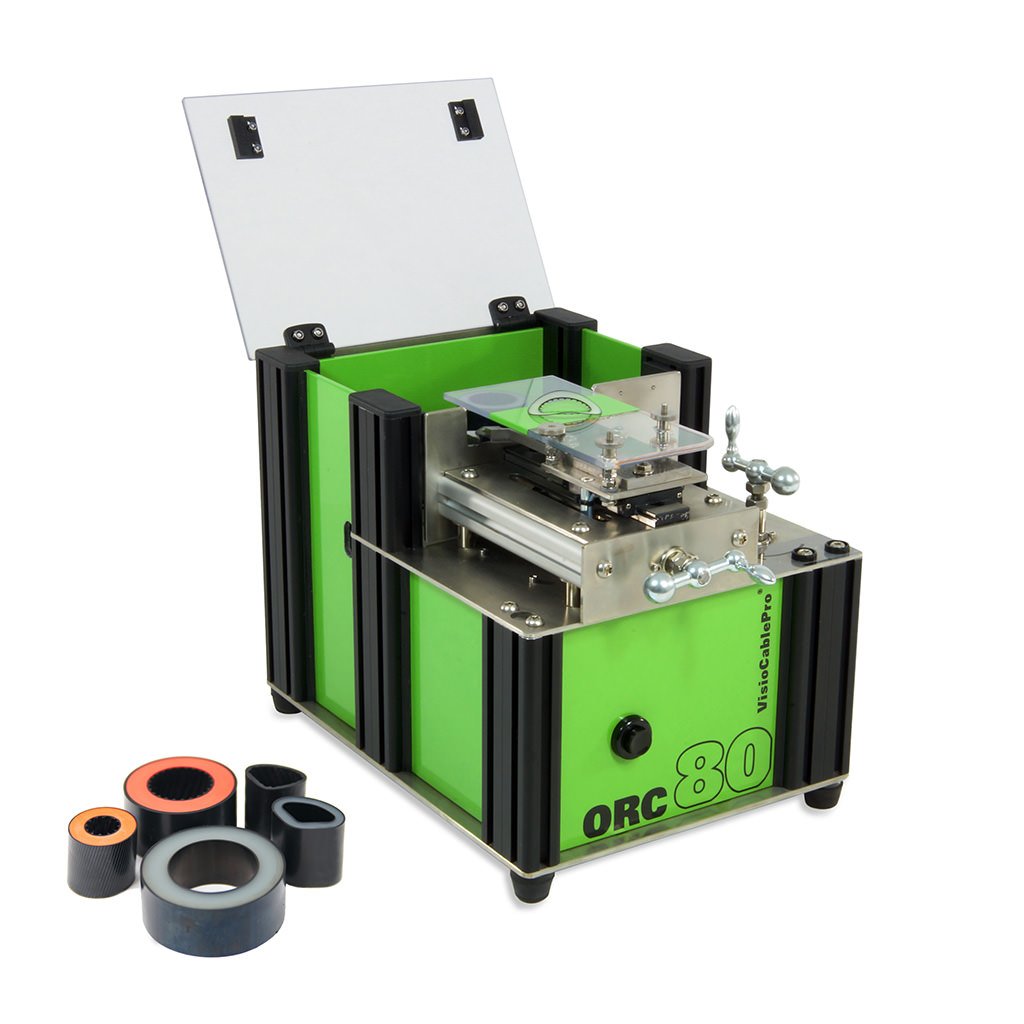

ORC 80
 |
- Device for sample preparation of hard materials up to 80 mm(3.15 inch)
- Quick and efficient cut
- Thin, evenly and parallel cut samples with a smooth surface
- Is an ideal complement to ORC65 and ORC150
- First ORC device which cuts sectors with ease
- LED light to illuminate the cutting process
|

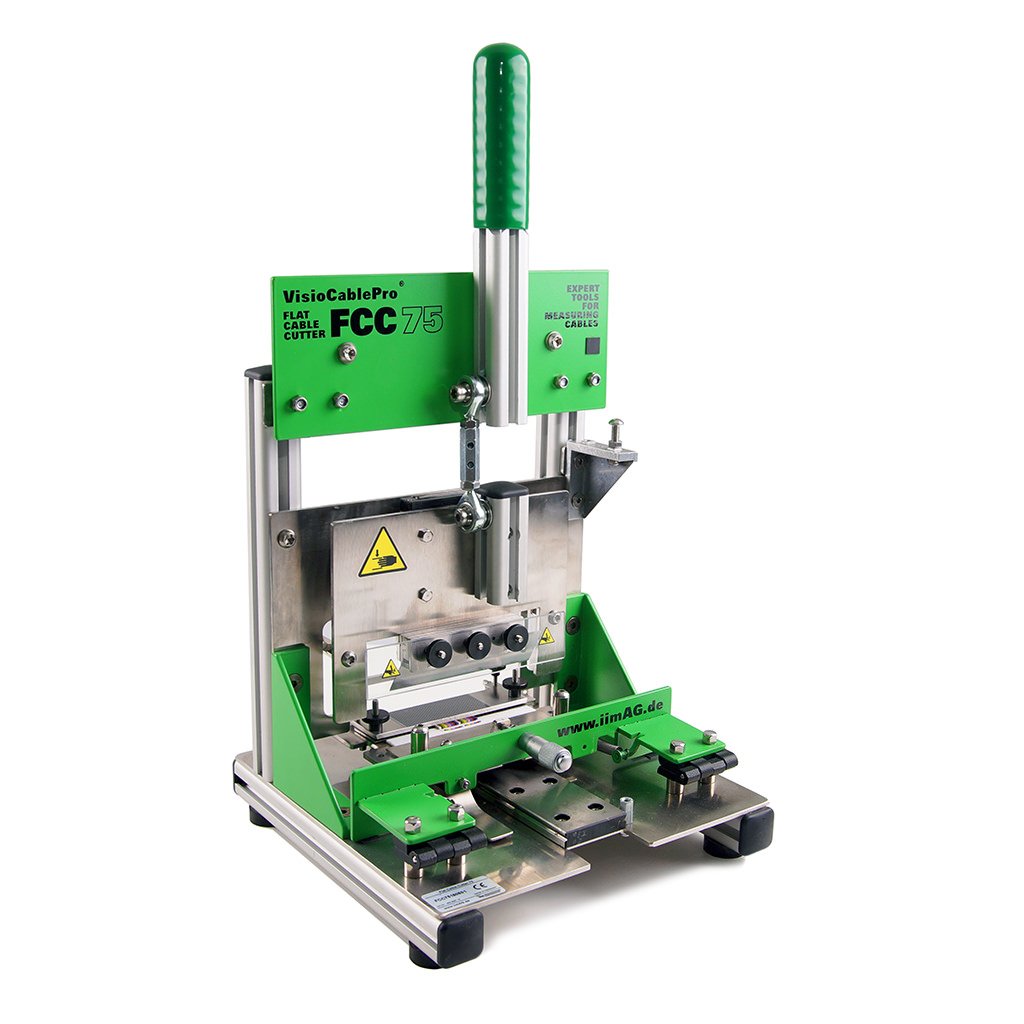

Flat Cable Cutter FCC75
 |
- Device for sample preparation of flat cables up to max. 75x8 mm (2.95 x 0.31") width x height
- Very robust device for quick and efficient cutting of flat cables
- Exact adjustment of the sample thickness (depending on material)
- Thin, evenly and parallel cut samples with a smooth surface (especially the very small and many cores require
a very thin cut to avoid shadows)
- Precise and repeateble measuring results due to reproducible samples
|
Offline Cable Measurements
The cable measuring devices of the VisioCablePro® series optimize the production, improve the quality of products and minimize costs substantially.

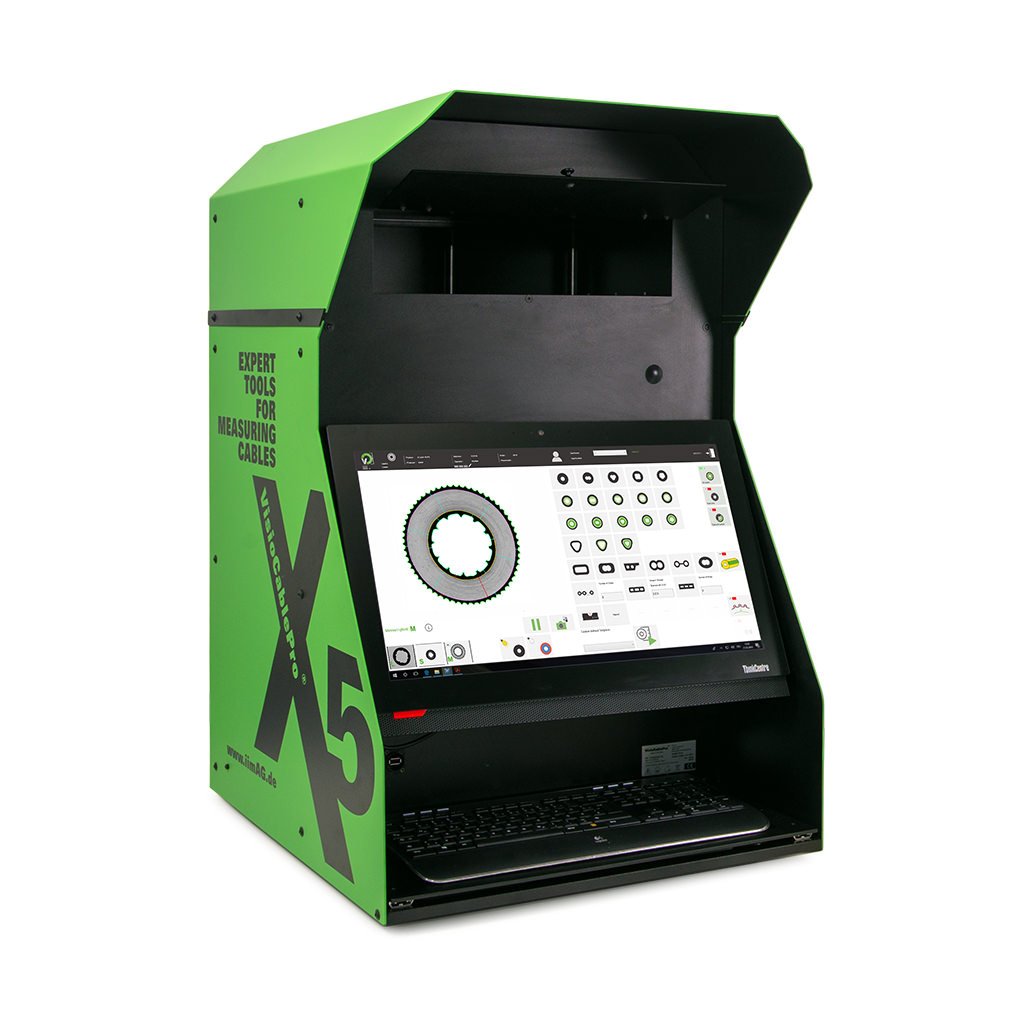

VCPX5
 |
- For measuring cable samples with an outer diameter up to 130 mm (5.11 inch)
- Object size / measuring range up to 130 mm (larger customizations are possible)
- Quick and very easy measurement
- Measurements according to standards IEC 60811 -201, -202, -203 / LV112 (A Factor)
- Suitable Software: VELOX (measuring software) and ProCable3 (CAQ System)
- Various external CAQ software are connectable (CIQ-AESA; ADVARIS; QDA-ASI-DATAMYTE; QUASAR; etc.)
- No user influence on default optical focus as well as default optimised, intelligent and homogenous lighting
- Shock and vibration resistant due to optimised sensor arrangement and balanced weight distribution
- Quick and very precise measurements due to the robust construction and easy operation
- Measuring software enables various operator level settings (production, labaratory, etc.)
- Standardised individual components lead to supply security and therefore a short delivery period
- Easy connection with external devices
|

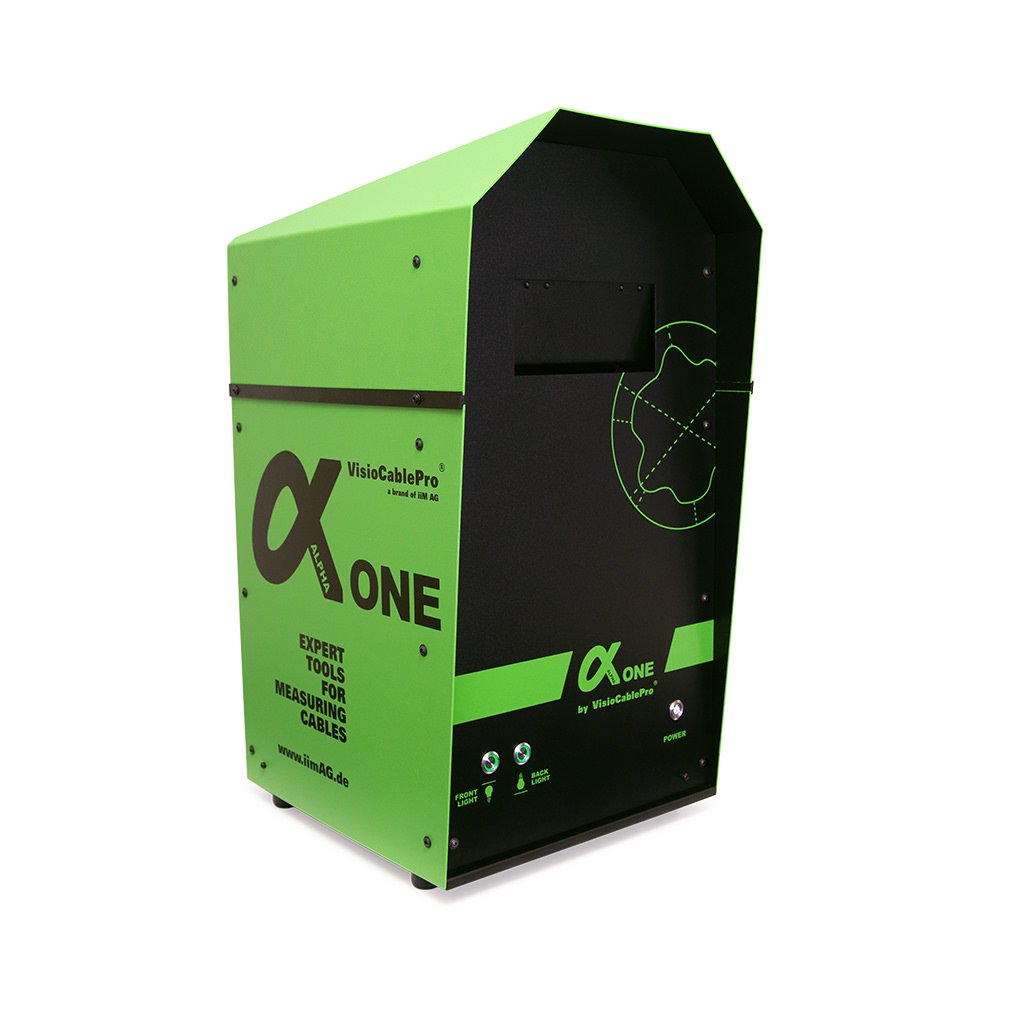

AlphaOne
 |
- For measuring cable & hose samples with an outer diameter up to 95 mm (3.74 inch)
- Specific object size - depending on the production line
- Quick and very easy measurement
- Measuring software VELOX included
- Compatible with all database software of the VCP family
- Various external CAQ software are connectable
- Low operator influence due to fixed focusing as well as preset illumination
- Robust design and simple, user-friendly operation
- Shock and vibration resistant due to an optimised sensor arrangement and balanced weight distribution
- Measuring software enables various operator level settings (production, labaratory, etc.)
- Standardised individual components lead to supply security and therefore a short delivery period
- Easy connection with external devices
|

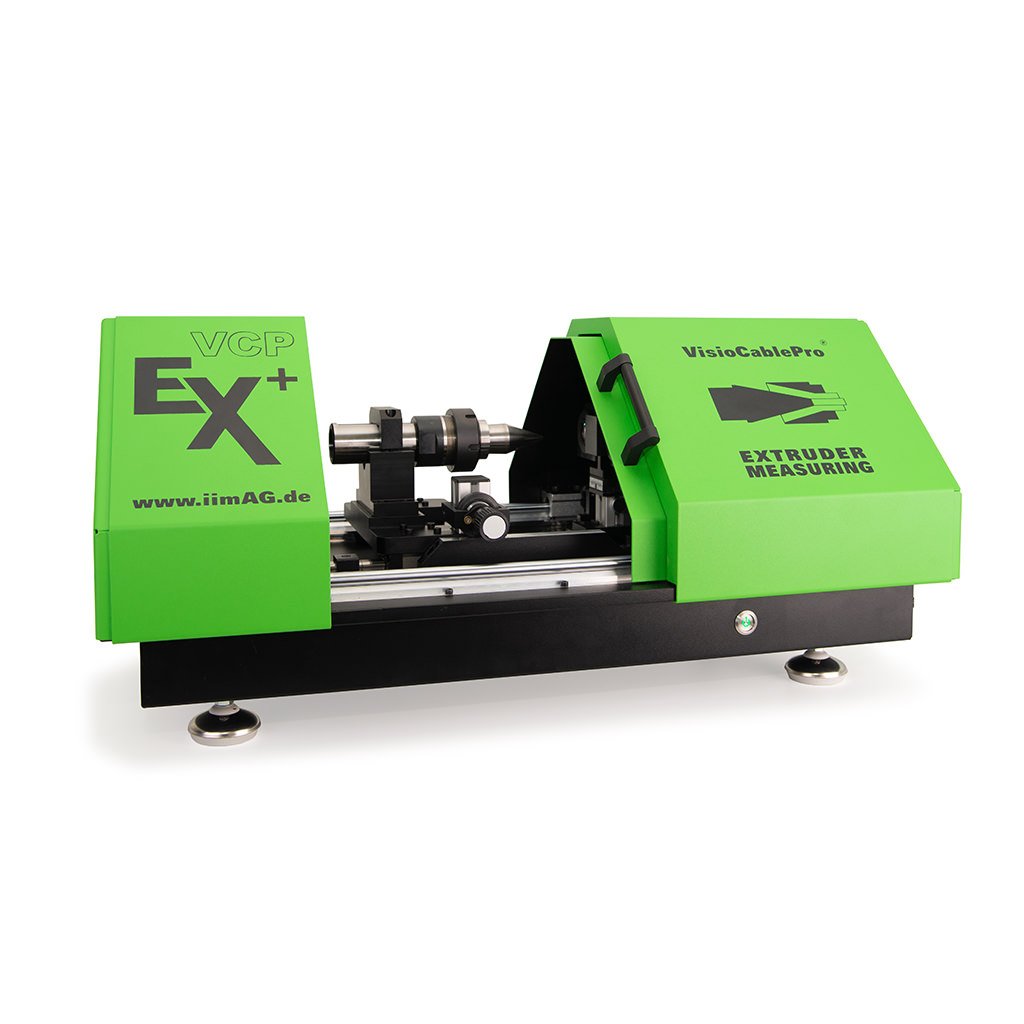

VCPEx+
 |
- Stand-alone system for high-precision and fast measurement of wire guides and mouthpieces
- Fast, reliable and highly accurate measuring process
- Telecentric cameras and lighting guarantee exact measurement results
- Up to 2 cameras and measuring fields in one compact device
- Simple handling and positioning of the extrusion tools (including conical tools/ conical wire guides)
- Focus indicator for easy focus adjustment
- No extraneous light influences thanks to measuring within a closed housing
- VeloxExtrusion measurement software included
- Robust and compact design, easy to handle
|

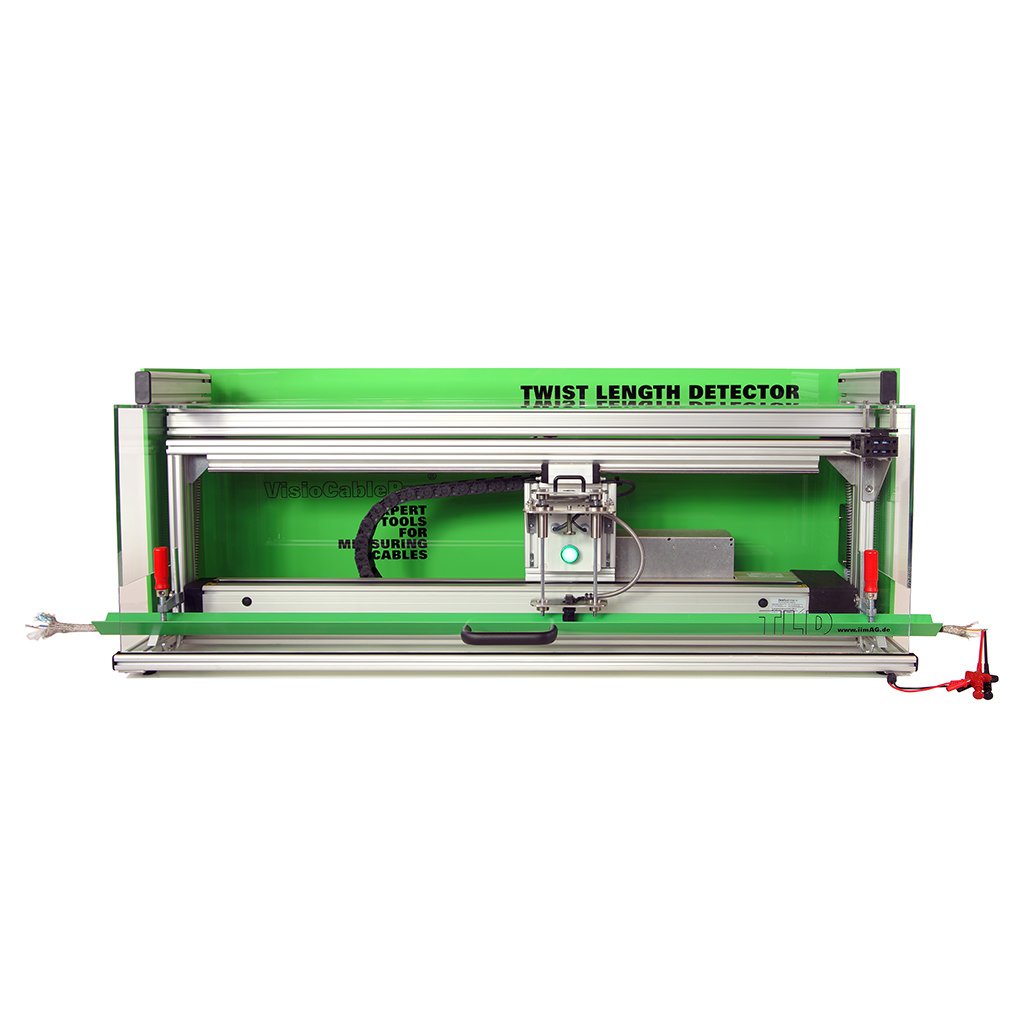

TLD
 |
- For measuring the twist/ lay/ pitch length of sheated cables
- Measurements according to the standards LV212 and LV122
- The twist length of the samples is measured without removing the sheath
- Traditional methods manipulate the sample (cable stripping / unwinding of conductors)
- Via a PC connection, the measuring results can directly be exported
- Fully automatic: By clicking one button, the measuring sensor automatically moves along the sample
|
