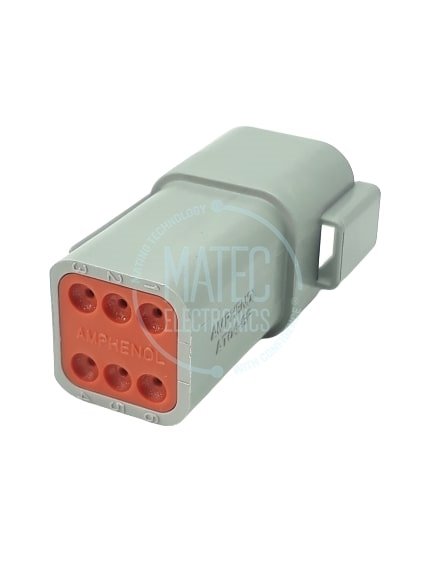

AT04-6PA (Connector)
Amphenol’s environmentally sealed thermoplastic A Series™ product line includes AT, ATP, ATM and AHD Series. A series encompass a wide range of products serving not only variety of industrial applications such as Heavy Duty, Transportation, Diagnostic, Alternative Energy and Agricultural industries but certain military and aerospace applications as well.A series is a best cost-effective interconnect solution for harsh environment applications thanks to it’s superior IP rating sealing capability.
ORDER NOW
Please share your contact details as below. Our Sales team will get in contact with you immediately after you fill in the form in order to assist you with the ordering procedure.
| Connector Series | : | A Series |
| Connector Shell Style | : | Receptacle |
| Connector Mounting Type | : | In-Line |
| Connector Mating Style | : | Push-Pull |
| Shell Material | : | Thermoplastic |
| Number of Contacts and Contact Size | : | 6 X 14-20 AWG |
| Contact Termination Type | : | Crimp |
| Contact Gender | : | Pin |
| Operating Temperature | : | -55°C // +125°C |
| Keying Rotation | : | N |
| Mating Cycle | : | 100 |
| RoHS | : | YES |
| Weight | : | - |
