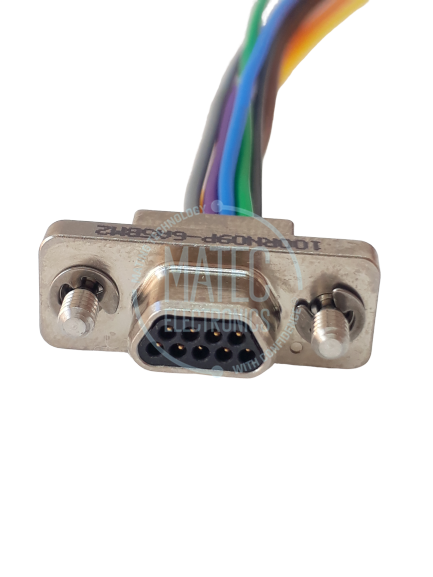

100RN09P-6A5BM2
MIL-DTL-83513 Micro-D (M83513) connector series offers proven Military spec performance and reliablitiy in rectangular and stripline micro Connectors. Terminations are avaliable in a broad range including solder cup, terminated to wire harness, vertical and right angle PCB. Plastic and metal Shell versions are available in Micro-D series, in a broad range of Shell finishes.
ORDER NOW
Please share your contact details as below. Our Sales team will get in contact with you immediately after you fill in the form in order to assist you with the ordering procedure.
| Connector Series | : | MIL-DTL-83513 Micro-D Series |
| Connector Shell Style | : | Straight Plug |
| Connector Mounting Type | : | Panel Mount |
| Connector Mating Style | : | Screw Coupling |
| Shell Material | : | Aluminum |
| Shell Plating | : | Electroless Nickel Plating |
| Shell Size and Insert Arrangement | : | 09 |
| Number of Contacts and Contact Size | : | 9 |
| Contact Termination Type | : | Pre Wired |
| Contact Gender | : | Pin |
| Operating Temperature | : | -55°C // +125°C |
| Mating Cycle | : | 500 |
| Hardware | : | Low Profile Jackscrew, Allen Head |
| Threaded Insert | : | M2 Threaded Insert |
| Wire Size | : | 24 |
| Wire Type | : | 7 Strd. per NEMA-HP3 (MIL-W-16878/4) |
| Wire Color | : | Color coded per Mil-STD-681, System 1 |
| Wire Lenght (Inches) | : | 36 |
