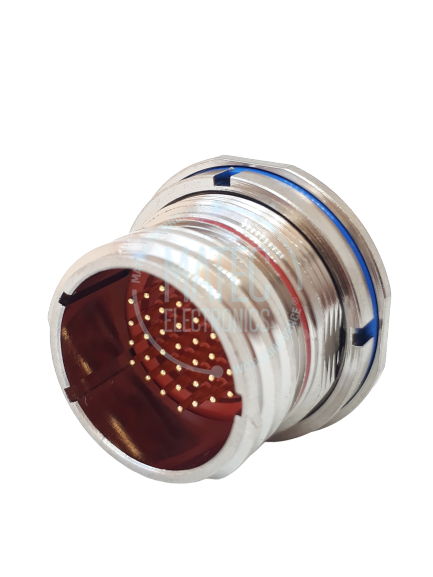

2M801-011-07M13-37PA
Amphenol 2M ( Mighty Mouse ) Micro38999 Connector Series offers highest performance for applications requiring reduced size, weight and harshest environment resistance. This smaller, high density, lightweight connector series is designed and tested to Mil-Spec standards and comparable to MIL-DTL-38999 with reduced mechanical dimensions.
ORDER NOW
Please share your contact details as below. Our Sales team will get in contact with you immediately after you fill in the form in order to assist you with the ordering procedure.
| Connector Series | : | 2M Mighty Mouse Series |
| Connector Shell Style | : | Receptacle |
| Connector Mounting Type | : | Jam-Nut |
| Connector Mating Style | : | Threaded |
| Shell Material | : | Aluminum |
| Shell Plating | : | Electroless Nickel Plating |
| Shell Size and Insert Arrangement | : | 13-37 |
| Number of Contacts and Contact Size | : | 37 X 23 AWG |
| Contact Termination Type | : | PC-Tail |
| Contact Gender | : | Pin |
| Operating Temperature | : | -65°C // +150°C |
| Keying Rotation | : | A |
| Mating Cycle | : | 2000 |
| RoHS | : | YES |
| Weight | : | - |
| IP Class | : | - |
