AC-4512-100
- High screening efficiency and low surface transfer impedance values with computer optimization and Quality control automation
- Average nominal optical closure 99%, minimum or value 93%
- High expansion and contraction ability with super elasticity
- Plastic Former that can be easily removed and used as a guide
- In addition to facilitating the installation of PVC guide hose, it provides protection of the EMI cable shielding braid form.
- It is produced in 11 different diameters from 3mm to 40mm.
- It is suitable for cable screening in military standards.
|

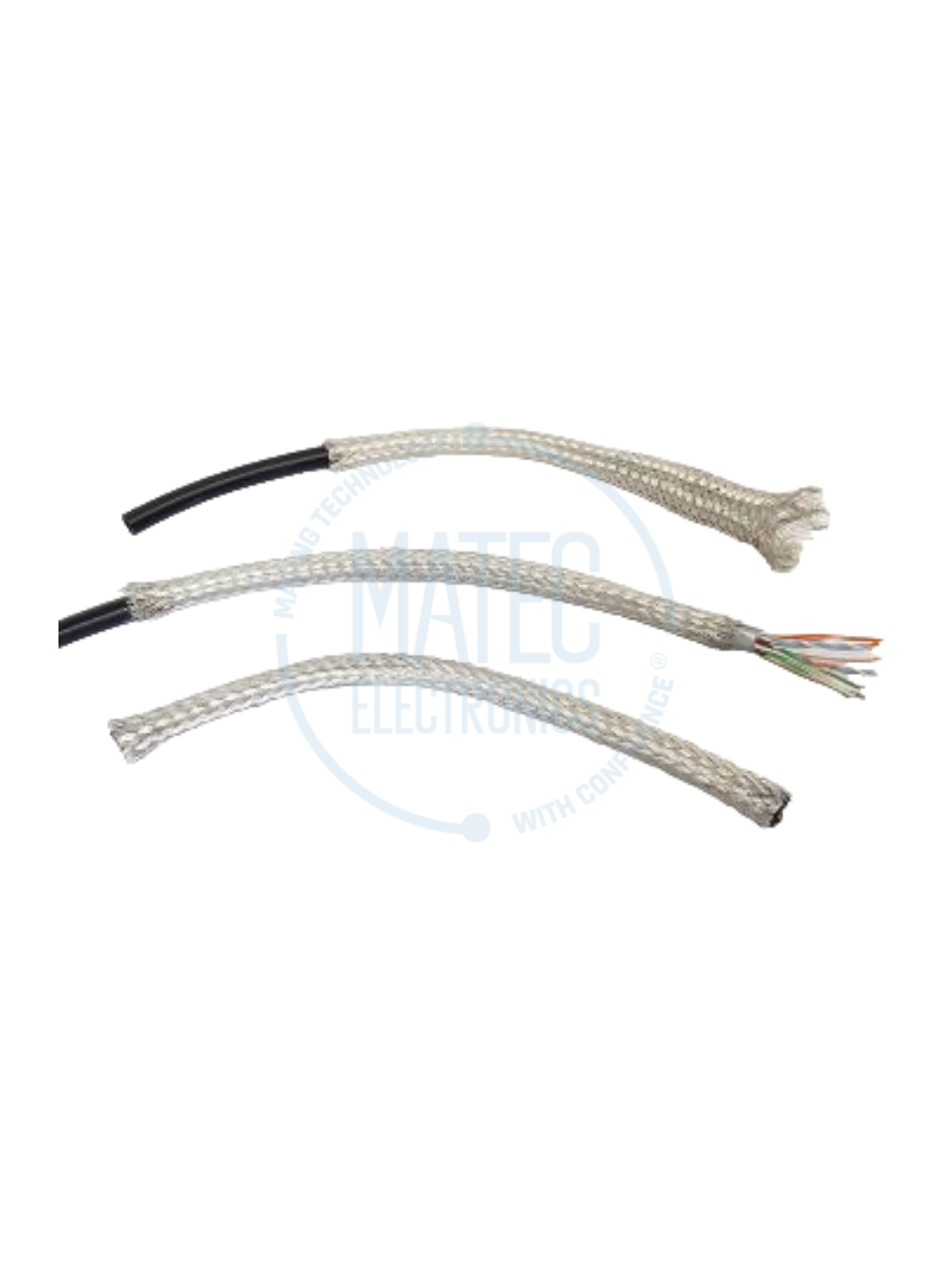

AC-4500 Flexible EMI Cable Shielding Cu/Sn* |
||||||||
|
Product Code |
VG-Norm Description |
Plastic Pipe |
Wire Size |
Harness Tolerance (mm)** |
Coverage(%) |
Max. Weight |
||
|
Dia. (mm) |
AWG/mm |
min.Ø |
max.Ø |
minimum |
nominal |
(kg/km)*** |
||
|
AC-4503 |
VG96936T10A001A |
3,0 ± 0,15 |
38 / 0,10 |
2,5 |
5,0 |
93,0 |
99,0 |
12,95 |
|
AC-4504 |
VG96936T10A002A |
4,0 ± 0,25 |
36 / 0,127 |
3,5 |
7,5 |
93,0 |
99,1 |
21,45 |
|
AC-4506 |
VG96936T10A003A |
6,0 ± 0,25 |
36 / 0,127 |
4,5 |
9,5 |
93,0 |
98,9 |
29,27 |
|
AC-4507 |
VG96936T10A004A |
7,5 ± 0,25 |
36 / 0,127 |
7,0 |
14,0 |
93,0 |
99,4 |
44,51 |
|
AC-4510 |
VG96936T10A005A |
10,0 ± 0,25 |
36 / 0,127 |
8,0 |
22,0 |
93,0 |
99,5 |
54,45 |
|
AC-4512 |
VG96936T10A006A |
12,5 ± 0,25 |
36 / 0,127 |
11,0 |
24,0 |
93,0 |
99,3 |
67,94 |
|
AC-4515 |
- |
15,0 ± 0,35 |
36 / 0,127 |
13,5 |
28,0 |
93,0 |
99,0 |
90,15 |
|
AC-4520 |
VG96936T10A007A |
20,0 ± 0,35 |
36 / 0,127 |
16,0 |
36,0 |
93,0 |
98,8 |
104,80 |
|
AC-4525 |
- |
25,0 ± 0,35 |
32 / 0,20 |
20,0 |
38,0 |
93,0 |
98,2 |
197,50 |
|
AC-4530 |
- |
30,0 ± 0,35 |
32 / 0,20 |
25,0 |
40,0 |
93,0 |
97,9 |
209,90 |
|
AC-4540 |
- |
40,0 ± 0,35 |
32 / 0,20 |
35,0 |
50,0 |
93,0 |
96,2 |
283,54 |
