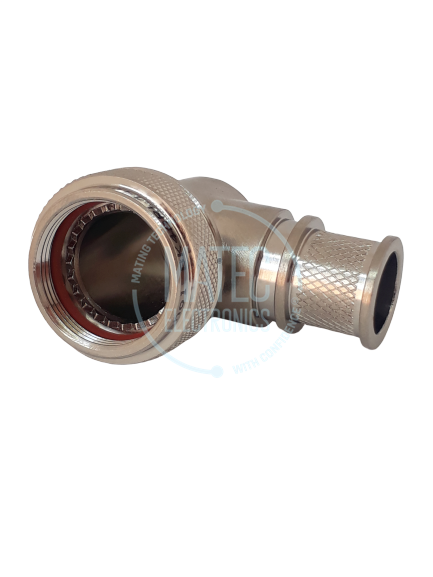

BK4ARL14089SN
Amphenol Backshells are used for almost all of interconnect application to increase ruggedness and durability of the interconnect design. Amphenol Backshells are designed for optimum performance in the application or environment it will be used in and provide various options for different requirements such as EMI/RFI shielding, Environmental sealing, Strain Reliefs, application angles ( Straight , 45 Degree, Right Angle ) .
ORDER NOW
Please share your contact details as below. Our Sales team will get in contact with you immediately after you fill in the form in order to assist you with the ordering procedure.
| Product Series | : | MIL-DTL-38999 Series III |
| Material | : | Aluminium |
| Shell Plating | : | Electroless Nickel |
| Shell Size | : | 15 |
| Environmental Performance | : | Environmentally Sealed |
| Electrical Performance | : | EMI / RFI Shielding |
| Operating Temperature | : | -65°C / +175°C |
| Application Angle | : | 90 Degree Entry |
| Cable Outer Diameter (mm) | : | 12,5 |
| RoHS | : | Yes |
Shell Plating
Electroless Nickel
Operating Temperature
-40°C / +200°C
RoHS
No
Environmental Performance
Environmental
Electrical Performance
EMI/RFI Shielding
Application Angle
90° Entry
Material
Aluminium
Product Series
D38999 Series 3 Backshell
