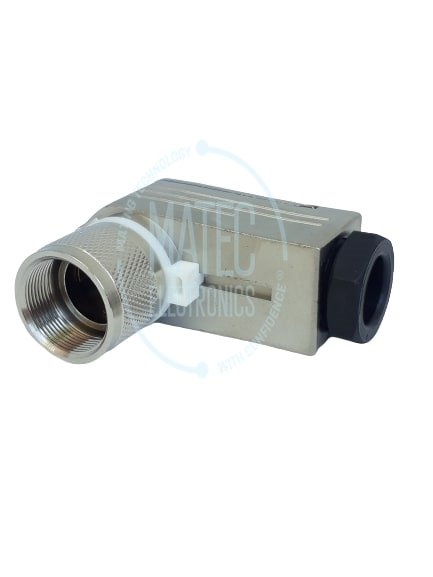

C091-11F008-001-2-U
Amphenol’s C091 (M16 Size) Circular DIN Connectors are available with a threaded or bayonet locking feature offering environmental protection from IP40 to IP69K when mated. The compact design provides insert layouts from 2-14 positions, excellent EMI shielding capacity ensuring highest integrity for power and signal connections. The modular structure of the series enables a broad field of applications in diverse temperature ranges and many types for 4G/5G mobile radio networks.
ORDER NOW
Please share your contact details as below. Our Sales team will get in contact with you immediately after you fill in the form in order to assist you with the ordering procedure.
| Connector Series | : | C091 Circular Series |
| Connector Shell Style | : | Right Angle Plug |
| Connector Mounting Type | : | Cable Mount |
| Connector Mating Style | : | Screw Coupling |
| Shell Material | : | Aluminum |
| Shell Plating | : | Electroless Nickel Plating |
| Number of Contacts and Contact Size | : | 8 X 1,5 MM² |
| Contact Termination Type | : | Crimp |
| Contact Gender | : | Socket |
| Operating Temperature | : | -40°C // +100°C |
| Keying Rotation | : | N |
| Mating Cycle | : | 500 |
| RoHS | : | YES |
| Weight | : | - |
| IP Class | : | IP67 |
