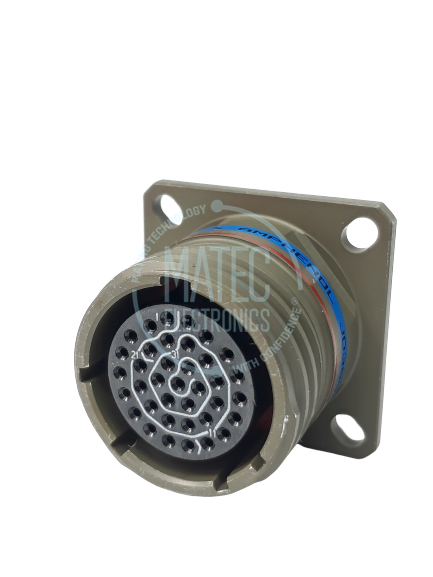

D38999/20WD35BN
MIL-DTL-38999 Series III connectors offer highest performance for general duty and harshest environment applications for both Military and Industrial programs. Meeting or exceeding MIL-DTL-38999 Series III requirements, the connectors provides better environmental resistance and EMI performance with countless options. In addition to these increased performance capabilities, QPL 38999 connectors also provide rugged vibration/shock and quick coupling features with hermeticity options.
ORDER NOW
Please share your contact details as below. Our Sales team will get in contact with you immediately after you fill in the form in order to assist you with the ordering procedure.
| Connector Series | : | MIL-DTL-38999 Series III |
| Connector Shell Style | : | Receptacle |
| Connector Mounting Type | : | Square Flange |
| Connector Mating Style | : | Threaded |
| Shell Material | : | Aluminum |
| Shell Plating | : | Olive Drab Cadmium |
| Shell Size and Insert Arrangement | : | D(15)-35 |
| Number of Contacts and Contact Size | : | 37 X 22D AWG |
| Contact Termination Type | : | Crimp |
| Contact Gender | : | Less Socket Contact |
| Operating Temperature | : | -65°C // +175°C |
| Keying Rotation | : | N |
| Mating Cycle | : | 500 |
| RoHS | : | NO |
| Weight | : | 22 grams |
Connector Series
MIL-DTL-38999 SERIES 3
Connector Shell Style
Receptacle
Connector Mounting Type
Wall Mount
Connector Mating Style
Threaded
Shell Material
Aluminium
Shell Plating
Olive Drab Cadmium
Shell Size and Insert Arrangement
D-35
Number of Contacts and Contact AWG
37*22D AWG
Contact Termination Type
Crimp
Contact Gender
Without Socket Contacts
Operating Temperature
175 °C
Keying Rotation
N
Mating Cycle
500
RoHS
Yes
Weight
22,38 g
