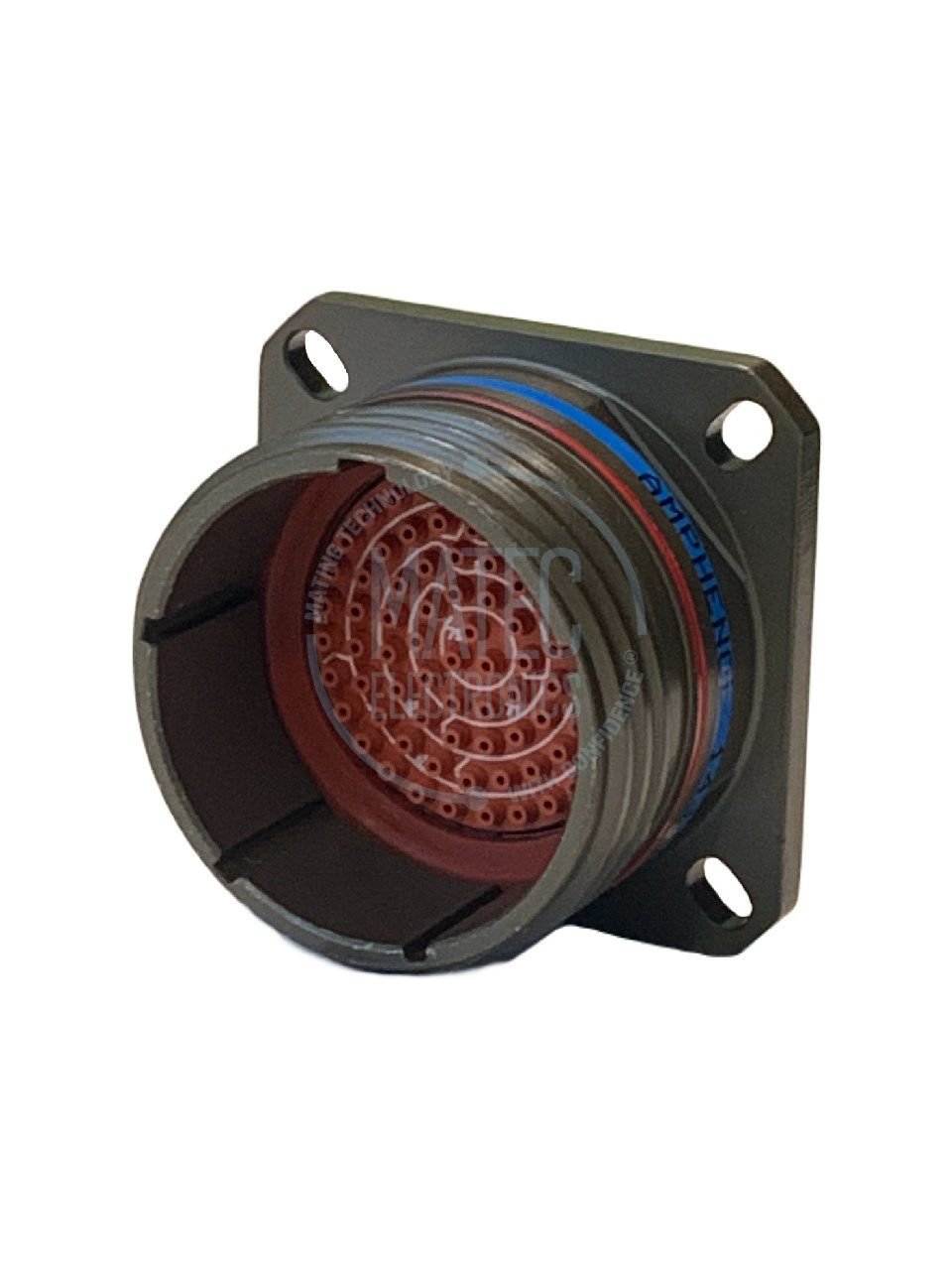

D38999/20WG35AN
MIL-DTL-38999 Series III connectors offer highest performance for general duty and harshest environment applications for both Military and Industrial programs. Meeting or exceeding MIL-DTL-38999 Series III requirements, the connectors provides better environmental resistance and EMI performance with countless options. In addition to these increased performance capabilities, QPL 38999 connectors also provide rugged vibration/shock and quick coupling features with hermeticity options.
ORDER NOW
Please share your contact details as below. Our Sales team will get in contact with you immediately after you fill in the form in order to assist you with the ordering procedure.
| Connector Series | : | MIL-DTL-38999 Series III |
| Connector Shell Style | : | Receptacle |
| Connector Mounting Type | : | Square Flange |
| Connector Mating Style | : | Threaded |
| Shell Material | : | Aluminum |
| Shell Plating | : | Olive Drab Cadmium |
| Shell Size and Insert Arrangement | : | G(21)-35 |
| Number of Contacts and Contact Size | : | 79 X 22D AWG |
| Contact Termination Type | : | Crimp |
| Contact Gender | : | Less Pin Contact |
| Operating Temperature | : | -65°C // +175°C |
| Keying Rotation | : | N |
| Mating Cycle | : | 500 |
| RoHS | : | NO |
