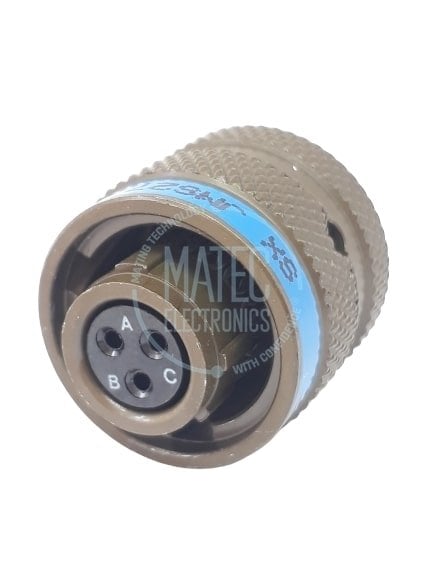

MS27467T9B98S
MIL-DTL-38999 Series I Connectors were developed to meet the need of the aerospace industry. Meeting or exceeding MIL-DTL-38999 Series I requirements, the Connectors provide environmental resistance and EMI performance with quick positive coupling and %100 scoop-proofness. These Connectors meet or exceed the Mil-Spec requirements and are available in aluminum, stainless steel or hermeticity options.
ORDER NOW
Please share your contact details as below. Our Sales team will get in contact with you immediately after you fill in the form in order to assist you with the ordering procedure.
| Connector Series | : | MIL-DTL-38999 Series I |
| Connector Shell Style | : | Straight Plug |
| Connector Mounting Type | : | Cable Mount |
| Connector Mating Style | : | Bayonet |
| Shell Material | : | Aluminum |
| Shell Plating | : | Olive Drab Cadmium |
| Shell Size and Insert Arrangement | : | 9-98 |
| Number of Contacts and Contact Size | : | 3 X 20 AWG |
| Contact Termination Type | : | Crimp |
| Contact Gender | : | Socket |
| Operating Temperature | : | -65°C // +175°C |
| Keying Rotation | : | N |
| Mating Cycle | : | 500 |
| RoHS | : | NO |
