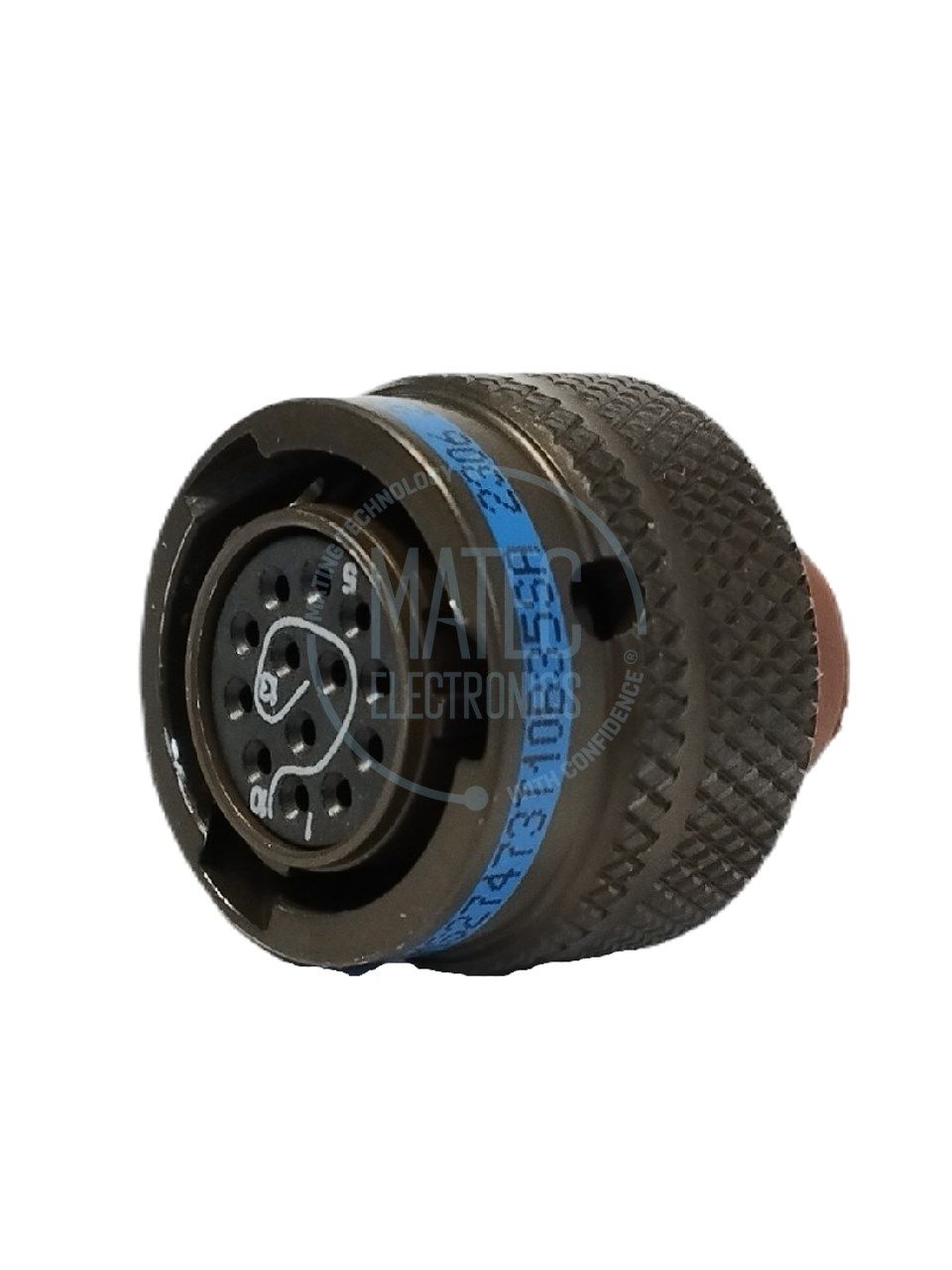

MS27473T10B35SA
MIL-DTL-38999 Series II Connectors were developed to meet the need of the aerospace industry. Meeting or exceeding MIL-DTL-38999 Series II requirements, the Connectors provide environmental resistance and EMI performance with quick positive coupling and low profile design. In addition to these increased performance capabilities, MIL-DTL-38999 Series II Connectors provide space saving and weight loss. These Connectors meet or exceed the Mil-Spec requirements and are available in aluminum, stainle
ORDER NOW
Please share your contact details as below. Our Sales team will get in contact with you immediately after you fill in the form in order to assist you with the ordering procedure.
| Connector Series | : | MIL-DTL-38999 Series II |
| Connector Shell Style | : | Straight Plug |
| Connector Mounting Type | : | Cable Mount |
| Connector Mating Style | : | Bayonet |
| Shell Material | : | Aluminum |
| Shell Plating | : | Olive Drab Cadmium |
| Shell Size and Insert Arrangement | : | 10-35 |
| Number of Contacts and Contact Size | : | 13 X 22D AWG |
| Contact Termination Type | : | Crimp |
| Contact Gender | : | Socket |
| Operating Temperature | : | -65°C // +175°C |
| Keying Rotation | : | A |
| Mating Cycle | : | 500 |
| RoHS | : | NO |
| IP Class | : | IP67 |
