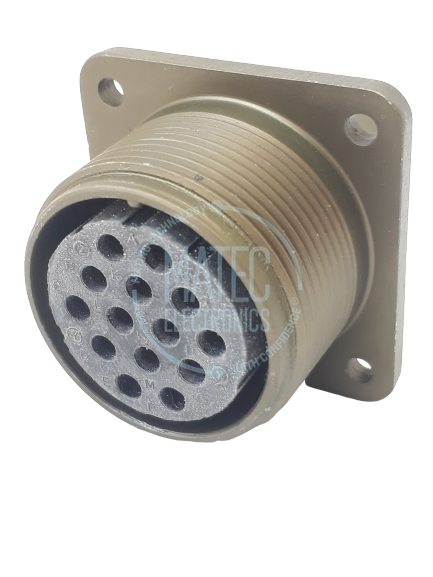

MS3102A20-27S
MIL-C-5015 series connectors offer threaded coupled connectors with solder or crimp contacts, for general duty and harshest environment applications. Available in a variety of styles and classes, these connectors are primarily used in a range of military and industrial applications where specific degrees of environmental and EMI protections are required.
ORDER NOW
Please share your contact details as below. Our Sales team will get in contact with you immediately after you fill in the form in order to assist you with the ordering procedure.
| Connector Series | : | MIL-DTL-5015 |
| Connector Shell Style | : | Receptacle |
| Connector Mounting Type | : | Square Flange |
| Connector Mating Style | : | Threaded |
| Shell Material | : | Aluminum |
| Shell Plating | : | Olive Drab Cadmium |
| Shell Size and Insert Arrangement | : | 20-27 |
| Number of Contacts and Contact Size | : | 14 X 16 AWG |
| Contact Termination Type | : | Solder |
| Contact Gender | : | Socket |
| Operating Temperature | : | -55°C // +125°C |
| Keying Rotation | : | N |
| Mating Cycle | : | 500 |
| RoHS | : | NO |
| Weight | : | - |
| IP Class | : | - |
