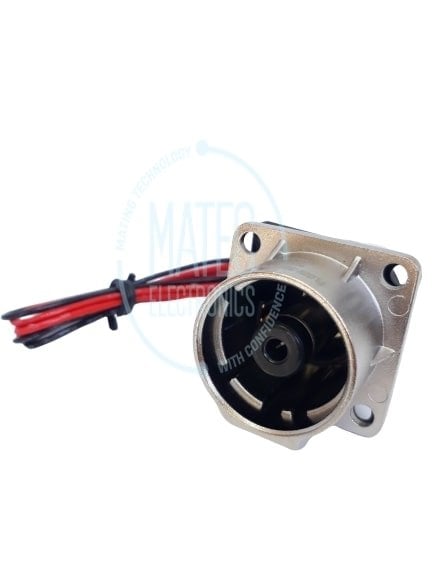

PL00Y-301-90-M8 (Connector)
Matec Electronics offers high performance and safety critical products that are required for various Electrical Vehicle applications. The EV product range covers countless options from ruggedized designs to many coupling options like push-pull operations. Matec’s electrical vehicle solutions are used in many different EV programs from battery packs and power distribution units to charging station applications.
ORDER NOW
Please share your contact details as below. Our Sales team will get in contact with you immediately after you fill in the form in order to assist you with the ordering procedure.
| Connector Series | : | Powerlock Series |
| Connector Shell Style | : | Receptacle |
| Connector Mounting Type | : | Square Flange |
| Connector Mating Style | : | Push-Pull |
| Shell Material | : | Thermoplastic |
| Number of Contacts and Contact Size | : | 1 X 35 MM² |
| Contact Termination Type | : | Busbar |
| Contact Gender | : | Pin |
| Operating Temperature | : | -40°C // +125°C |
| Keying Rotation | : | Y |
| Mating Cycle | : | 100 |
| RoHS | : | YES |
| Weight | : | - |
| IP Class | : | IP67 |
