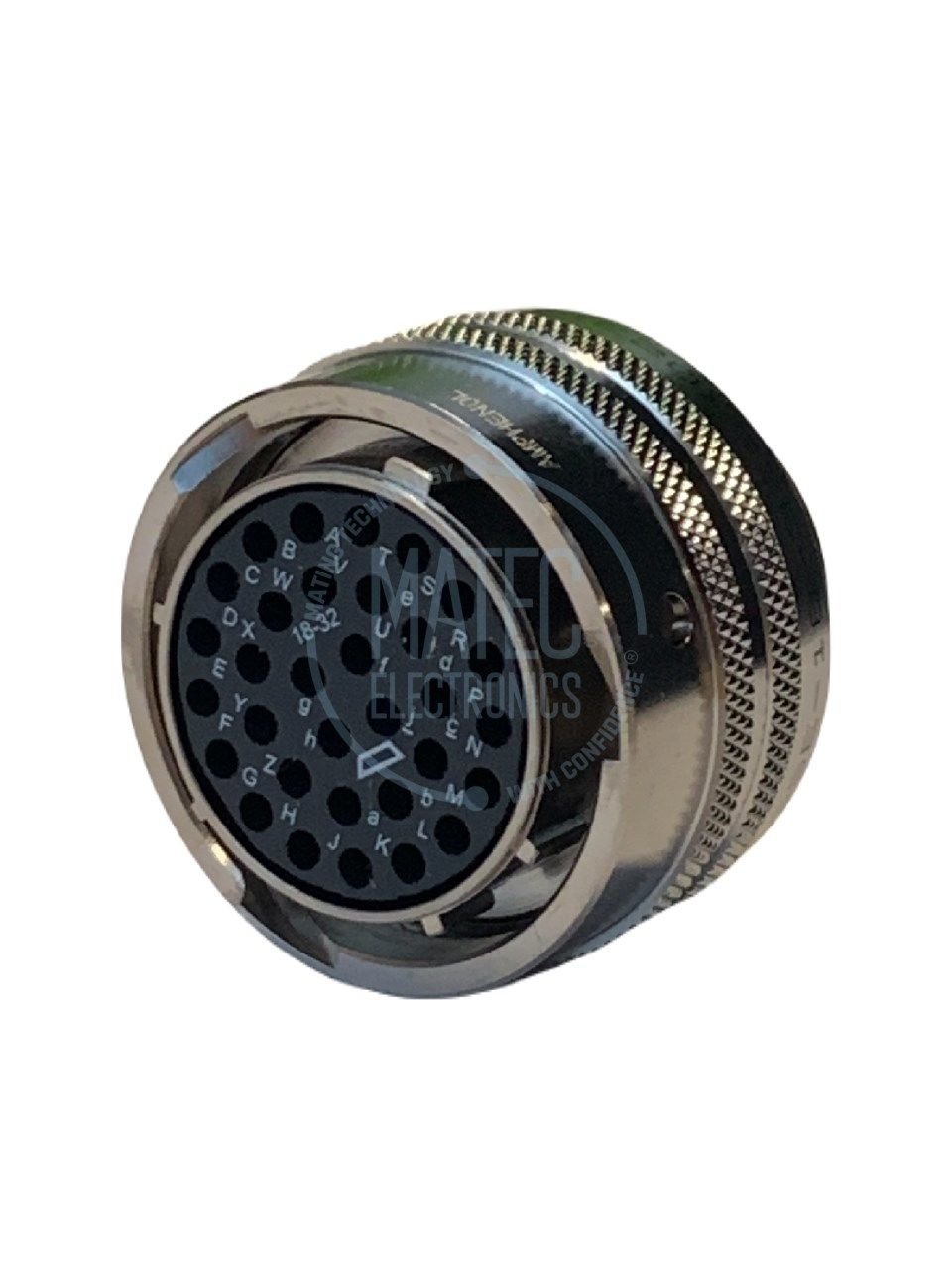

Amphenol® Miniature PT Series connectors offer twice the number of contacts in just half the size of a standard connector, providing high density contact arrangements. Meeting and exceeding MIL-DTL-26482 Series I, these cylindrical connectors are available in countless options for different selection requirements such as Solder, Crimp and PC-Tail options by providing maximum design flexibility. PT series is being used in many different harshest environment Military and Industrial applications.
| Connector Series | : | MIL-DTL-26482 Series I |
| Connector Shell Style | : | Plug with Accessory Threads |
| Connector Mounting Type | : | Cable Mount |
| Connector Mating Style | : | Bayonet |
| Shell Material | : | Aluminum |
| Shell Plating | : | Nickel |
| Shell Size and Insert Arrangement | : | 18-32 |
| Number of Contacts and Contact Size | : | 32 X 20 AWG |
| Contact Termination Type | : | Crimp |
| Contact Gender | : | Socket |
| Operating Temperature | : | -55°C // +125°C |
| Keying Rotation | : | N |
| Mating Cycle | : | 500 |
| RoHS | : | YES |
