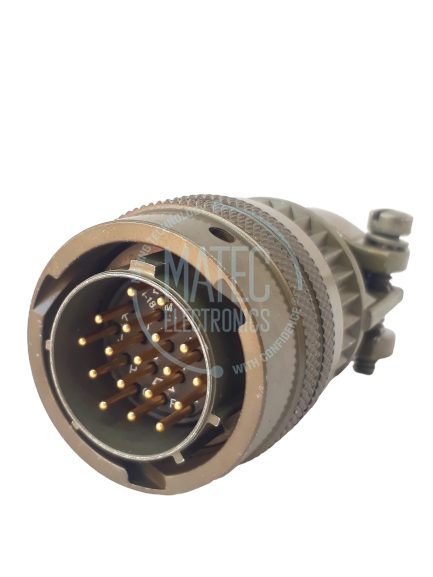

PT06E14-18P-SR
Amphenol® Miniature PT Series connectors offer twice the number of contacts in just half the size of a standard connector, providing high density contact arrangements. Meeting and exceeding MIL-DTL-26482 Series I, these cylindrical connectors are available in countless options for different selection requirements such as Solder, Crimp and PC-Tail options by providing maximum design flexibility. PT series is being used in many different harshest environment Military and Industrial applications.
ORDER NOW
Please share your contact details as below. Our Sales team will get in contact with you immediately after you fill in the form in order to assist you with the ordering procedure.
| Connector Series | : | MIL-DTL-26482 Series I |
| Connector Shell Style | : | Straight Plug |
| Connector Mounting Type | : | Cable Mount |
| Connector Mating Style | : | Bayonet |
| Shell Material | : | Aluminum |
| Shell Plating | : | Olive Drab Cadmium |
| Shell Size and Insert Arrangement | : | 14-18 |
| Number of Contacts and Contact Size | : | 18 X 20 AWG |
| Contact Termination Type | : | Solder |
| Contact Gender | : | Pin |
| Operating Temperature | : | -55°C // +125°C |
| Keying Rotation | : | N |
| Mating Cycle | : | 500 |
| RoHS | : | YES |
| Weight | : | - |
| IP Class | : | IP67 |
