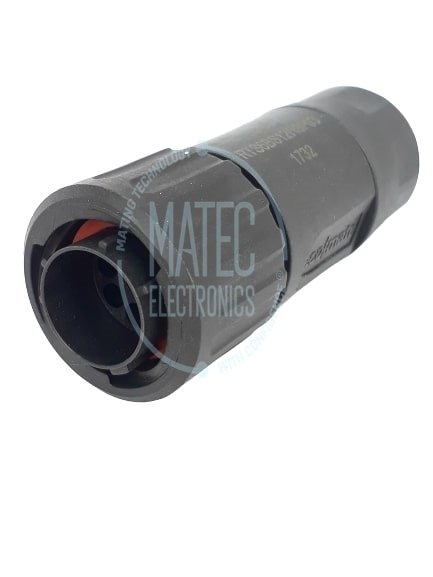

RTS714N4P
Amphenol RT series connectors are industrial multi-way connectors available in various insert arrangements with a variety of wire gauge options. The RT Series was designed to provide high performance for harsh environment applications and especially when IP protections are needed. The connector series offers IP67, IP69 and IP69K protections.
ORDER NOW
Please share your contact details as below. Our Sales team will get in contact with you immediately after you fill in the form in order to assist you with the ordering procedure.
| Connector Series | : | RT Series |
| Connector Shell Style | : | Receptacle |
| Connector Mounting Type | : | Jam-Nut |
| Connector Mating Style | : | Bayonet |
| Shell Material | : | Thermoplastic |
| Shell Plating | : | Black Anodizing |
| Number of Contacts and Contact Size | : | 4 X 2,5 MM² |
| Contact Termination Type | : | Crimp |
| Contact Gender | : | Pin |
| Operating Temperature | : | -40°C // +105°C |
| Keying Rotation | : | N |
| Mating Cycle | : | 500 |
| RoHS | : | YES |
| Weight | : | - |
| IP Class | : | IP69K |
