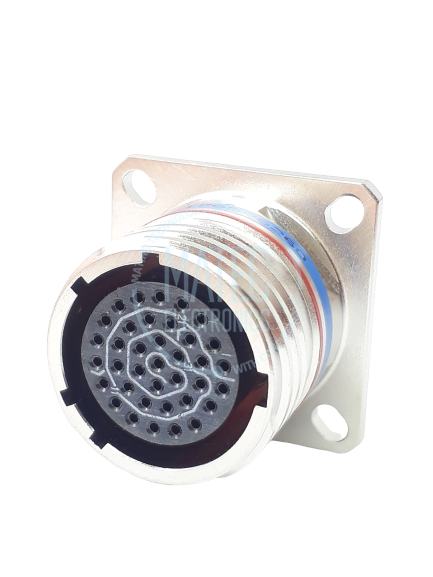

TVPS02RF-15-35S
Amphenol ® Tri-Start MIL-DTL-38999* Series III Connectors offer the highest performance capabilities for both general duty and severe environment applications. Meeting or exceeding MIL-DTL-38999 Series III requirements, the connectors provide better environmental resistance and EMI performance with countless options. In addition to these increased performance capabilities, TV Series, 38999, connectors also provide rugged vibration/shock and quick coupling features with hermeticity options.
ORDER NOW
Please share your contact details as below. Our Sales team will get in contact with you immediately after you fill in the form in order to assist you with the ordering procedure.
| Connector Series | : | MIL-DTL-38999 Series III |
| Connector Shell Style | : | Receptacle |
| Connector Mounting Type | : | Rear Mount |
| Connector Mating Style | : | Threaded |
| Shell Material | : | Aluminum |
| Shell Plating | : | Electroless Nickel Plating |
| Shell Size and Insert Arrangement | : | D(15)-35 |
| Number of Contacts and Contact Size | : | 37 X 22D AWG |
| Contact Termination Type | : | Crimp |
| Contact Gender | : | Socket |
| Operating Temperature | : | -65°C // +200°C |
| Keying Rotation | : | N |
| Mating Cycle | : | 500 |
| RoHS | : | YES |
Connector Series
MIL-DTL-38999 SERIES III
Connector Shell Style
Receptacle
Connector Mounting Type
Box Mount
Connector Mating Style
Threaded
Shell Material
Aluminium
Shell Plating
Electroless Nickel
Shell Size and Insert Arrangement
15-35
Number of Contacts and Contact AWG
37*22D AWG
Contact Termination Type
Crimp
Contact Gender
Socket
Operating Temperature
200 C
Keying Rotation
N
Mating Cycle
500
RoHS
Yes
